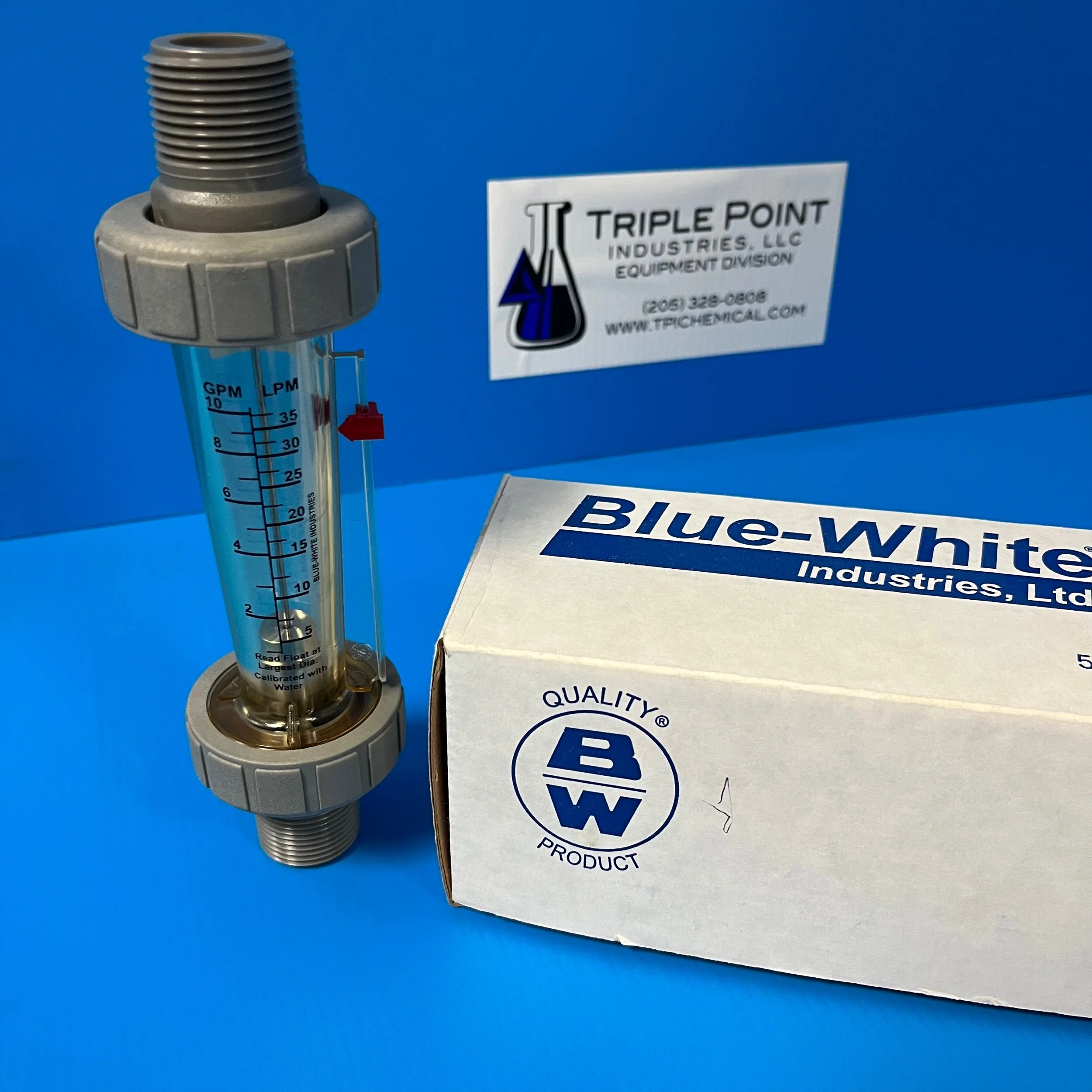

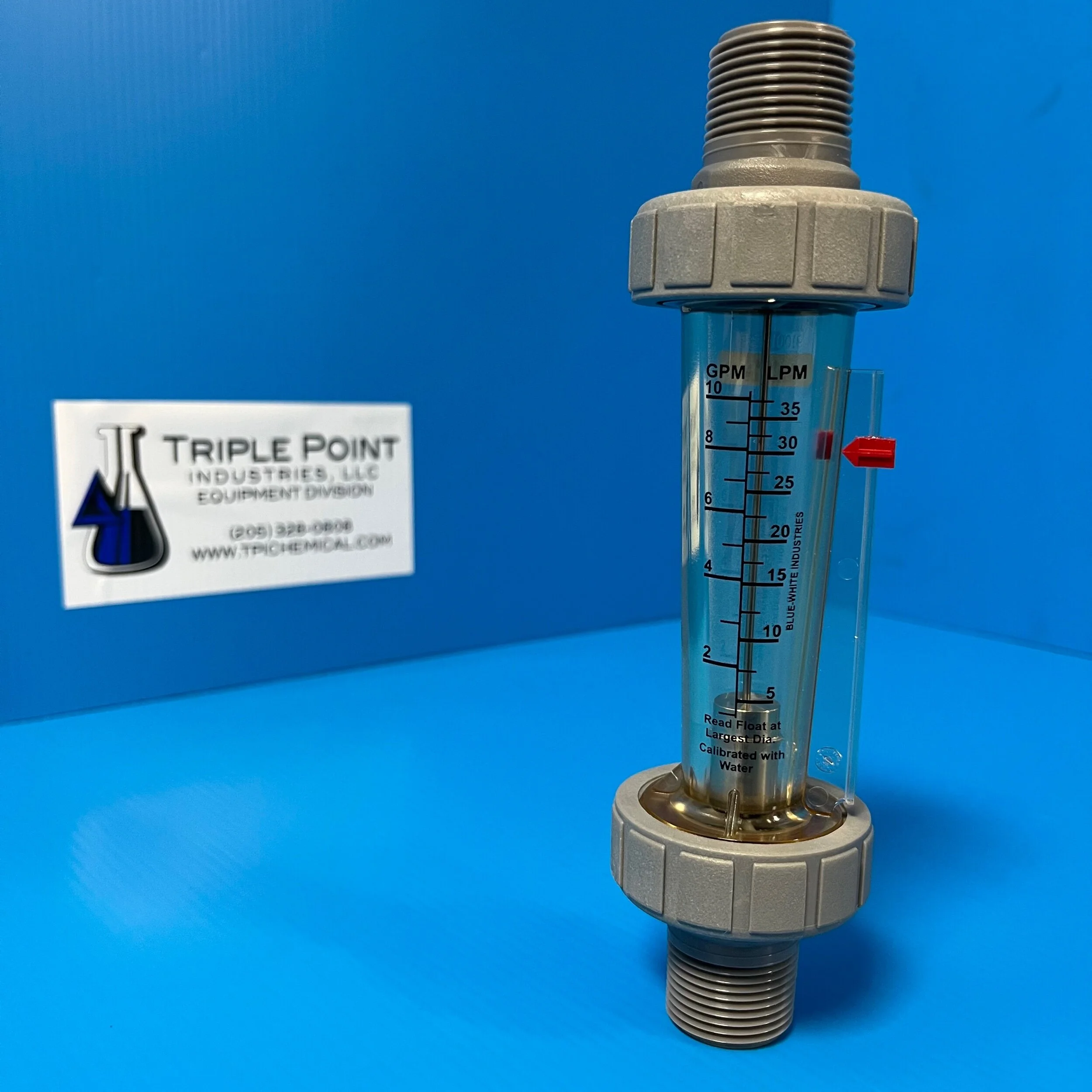

FLOW METER
| Adapter Size | 3/4" MNPT |
| Low Flow Reading | 1.0 GPM (5.0 LPM) |
| High Flow Reading | 10.0 GPM (37.5 LPM) |
| Adapter Material | Polysulfone |
| Float Material | 316SS |
| Max Working Pressure | 175 PSIg @70°F/ 12 BAR @21°C |
| Max Temperature | 212°F / 100°C @ 0 pressure |
| Full Scale Accuracy | ±4% |
| O-Ring | Viton (optional EP) |
| Approx. Ship Weight | 1/2 lb. |
| Length | 7 1/2" |
| Width | 2" |
| Type | Inline |
